4DP

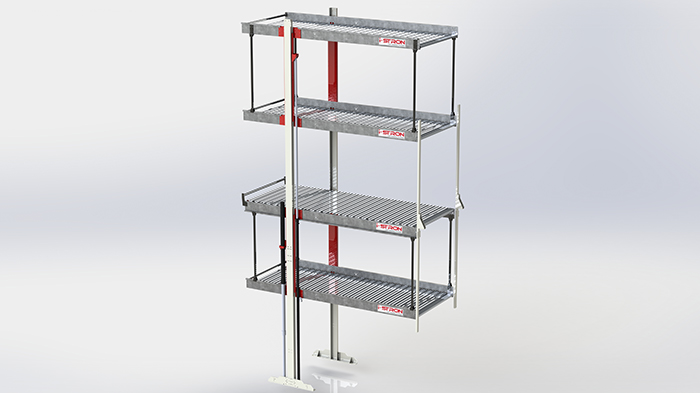

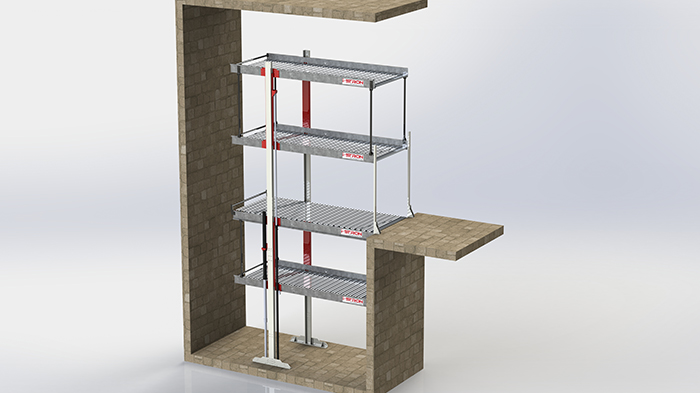

4DP uses 4 platforms driven upwards and downwards in a group of 2 platforms each. 1st and 2nd level platforms make a group and similarly, 3rd and 4th level platforms also make a group. Car parked on 2nd level platform has to be driven out and parked elsewhere while taking out car parked on 4th level platform. 1st, 2nd and 3rd level cars can be driven out independently.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 4 HP

Structural Loads of system

  • Vertical
    10000 Kgs
  • Horizontal
    900 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

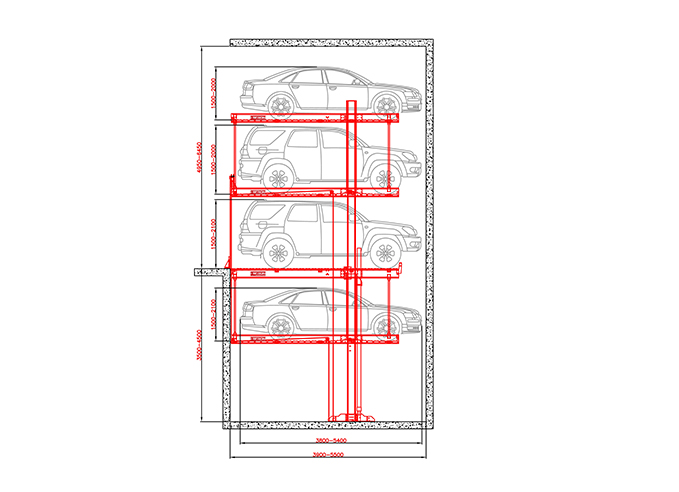

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
