2DP

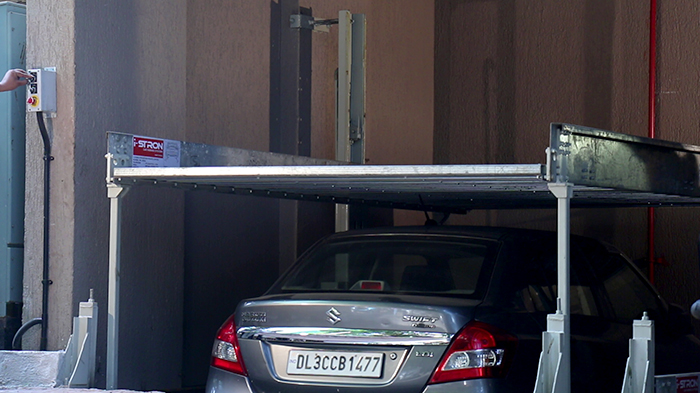

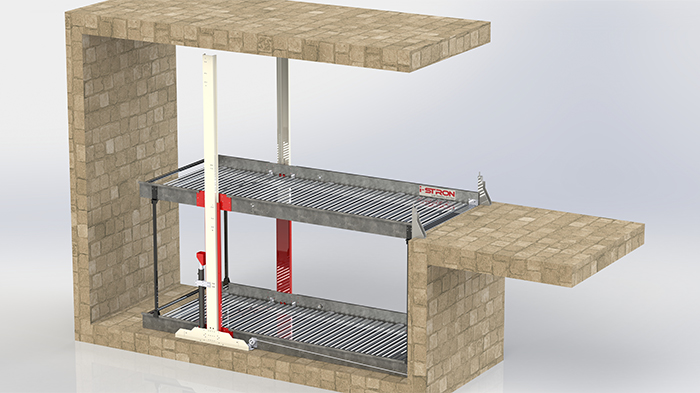

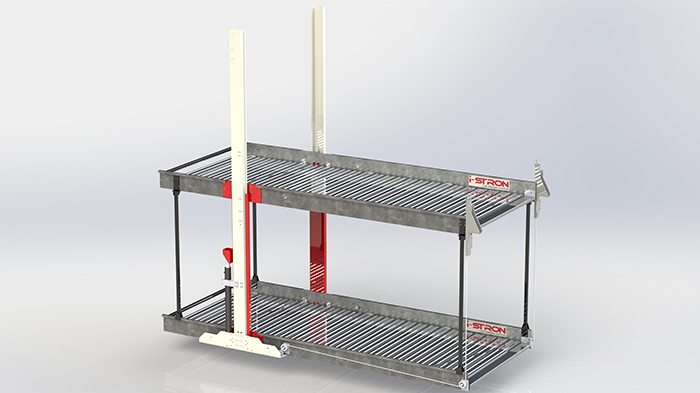

2DP uses 2 interconnected platforms similar to 2IP. The platforms are driven upwards and downwards together. To take out the lower car, upper car has to be taken out and parked elsewhere. 2DP is used specifically where the height available is limited but provision for pit is possible.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 3 HP

Structural Loads of system

  • Vertical
    5000 Kgs
  • Horizontal
    500 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

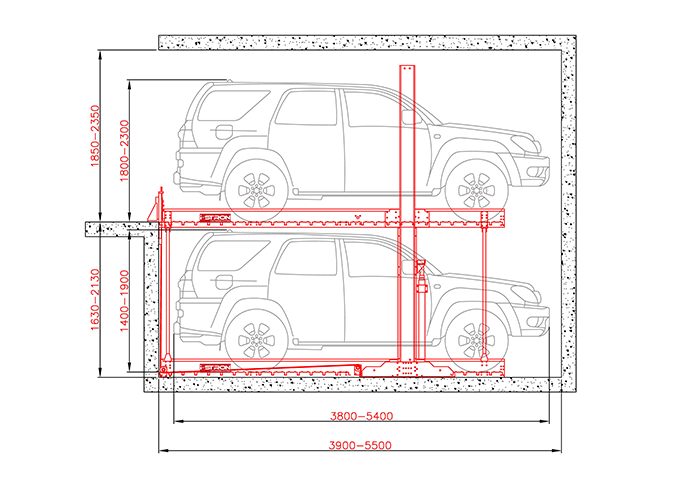

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
