3RP

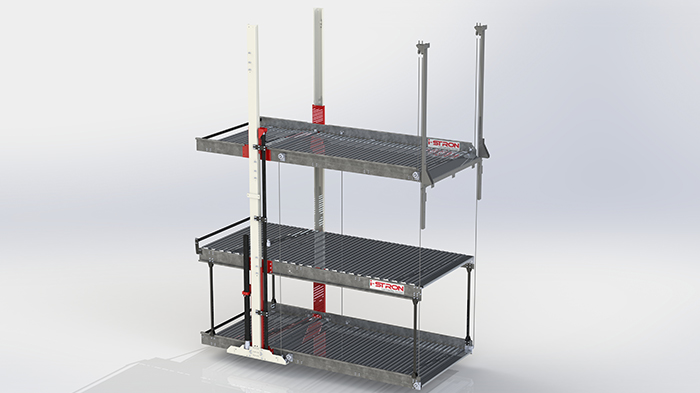

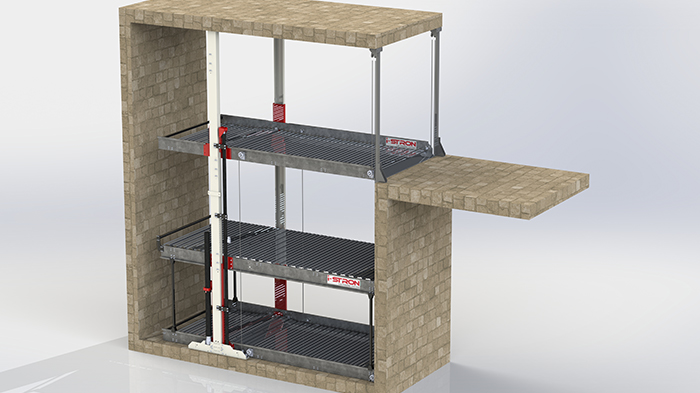

3RP uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out lower level car, upper level car has to be driven out and parked elsewhere.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 4 HP

Structural Loads of system

  • Vertical
    8000 Kgs
  • Horizontal
    700 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

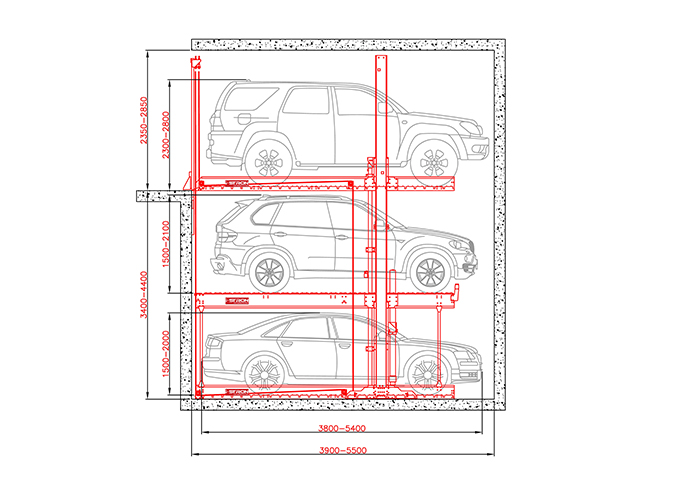

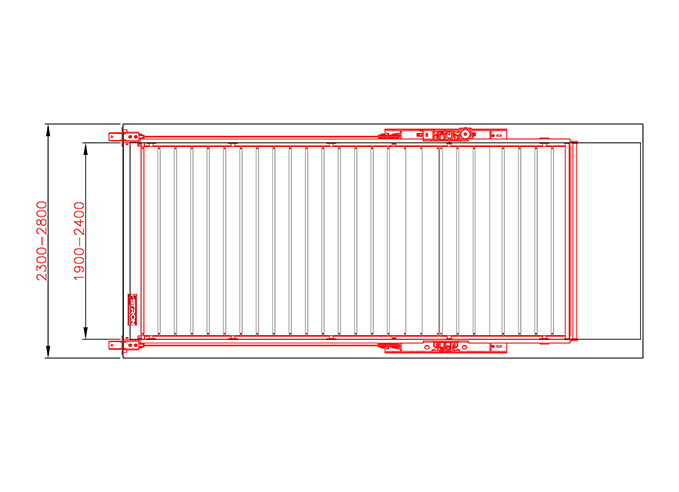

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
