Incline uses a platform placed at an angle of 15 to 20 degrees from the horizontal level and is driven upwards and downwards. Application wise, it is exactly similar to 2DS. The only difference being the platform placed at an angle to reduce the total slab to slab height requirement. It is possible to park 2 cars one above other where minimum height available is 2.9 mtrs.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 3 HP

Structural Loads of system

  • Vertical
    2000 Kgs
  • Horizontal
    700 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

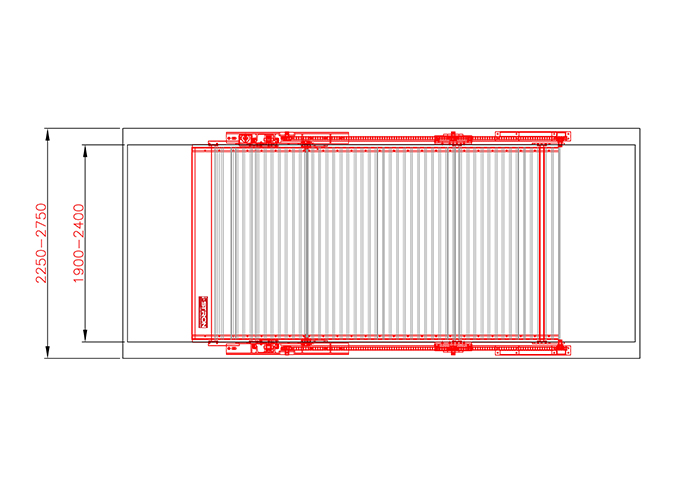

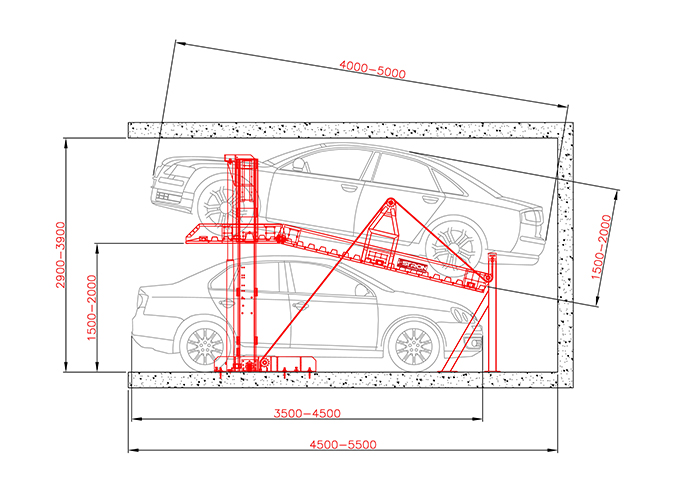

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
