Cantilever

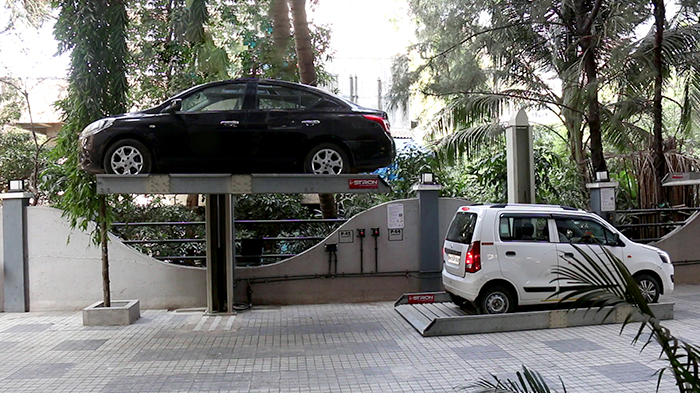

Cantilever uses a platform that is driven upwards and downwards similar to 2DS. The difference being both the columns and cylinders are shifted to one side of the platform in order to free the other side. The cantilever Stackpark is installed in the driveways, touching the compound wall or any other corner. When the platform is at its peak level, the driveway is clear for normal usage.
General Specifications
-
Loading Capacity1200 Kgs
-
DriveHydraulic
-
CoatingSand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
-
PowerPack3 phase Induction Motor - 3 HP
Structural Loads of system
-
Vertical7500 Kgs
-
Horizontal1000 Kgs
Electrical Requirement for system
-
Incoming Supply3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
-
Switchgear4 pole, 63 amps MCB for each powerpack
-
Cable from Main switch to MCB4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

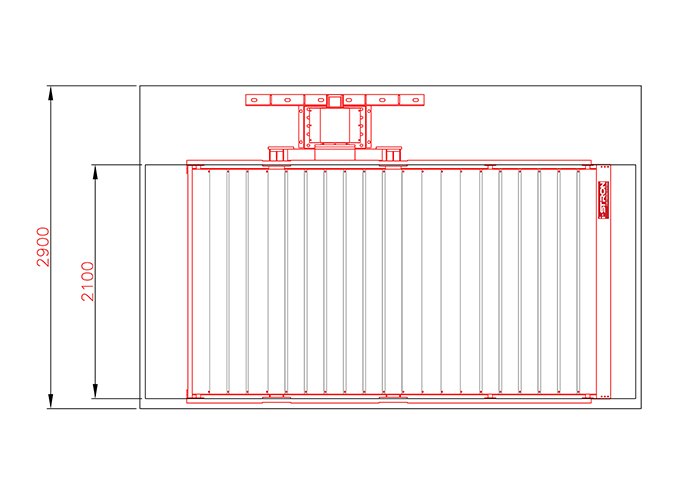

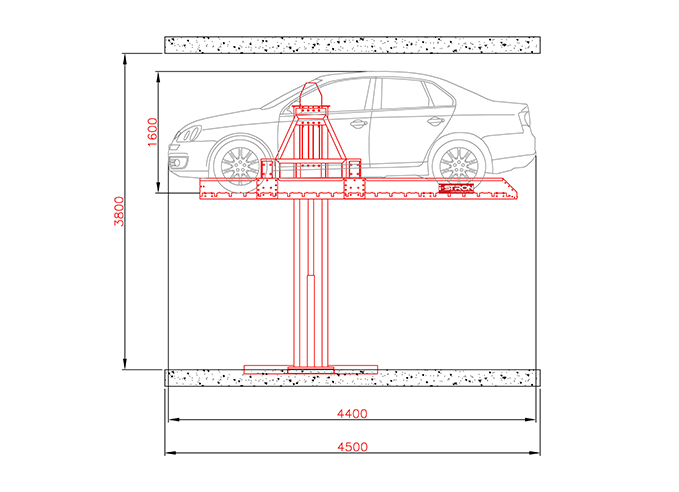

System Dimensions
Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
