Puzzle

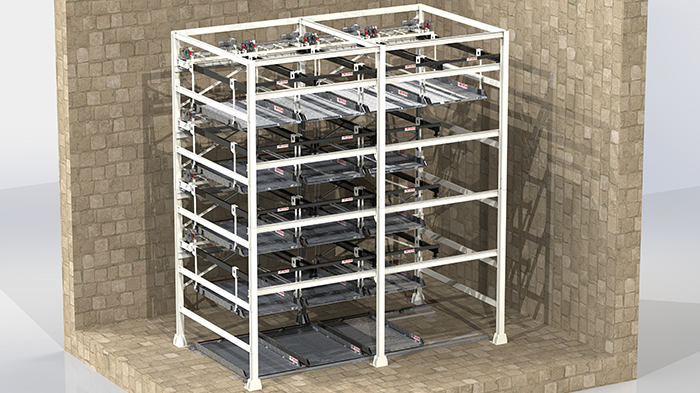

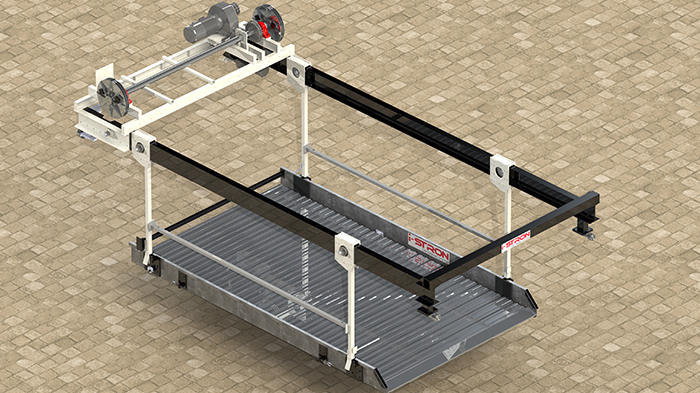

Puzzle can have upto 6 levels above ground level and 2 levels in pit. Horizontally it can have upto 10 grids. One grid (except for the topmost level) is to be kept empty for puzzle operation. To drive out or park any car on platform at upper level, the Parking system puzzles itself and brings down the respective platform. Entry level platforms are driven only horizontally, Upper level platforms are driven horizontally as well as vertically while Upper most platforms are driven only vertically using traction and ropes.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Traction & Hydraulic
  • Coating
    Sand blasted, Epoxy Painted system.Hot Dip Galvanized platforms
  • PowerPack for 1 level pit system
    3 phase Induction Motor - 3 HP
  • PowerPack 2 level pit system
    3 phase Induction Motor - 4 HP
  • PowerPack 3 level pit system
    3 phase Induction Motor - 6 HP

Structural Loads of system

  • System
    Varies with change in number of grids and levels in a puzzle and type of installation (indoor or outdoor). Contact us for details.

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, MCB for each control panel (rating dependant on number of grids and levels in a puzzle)
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

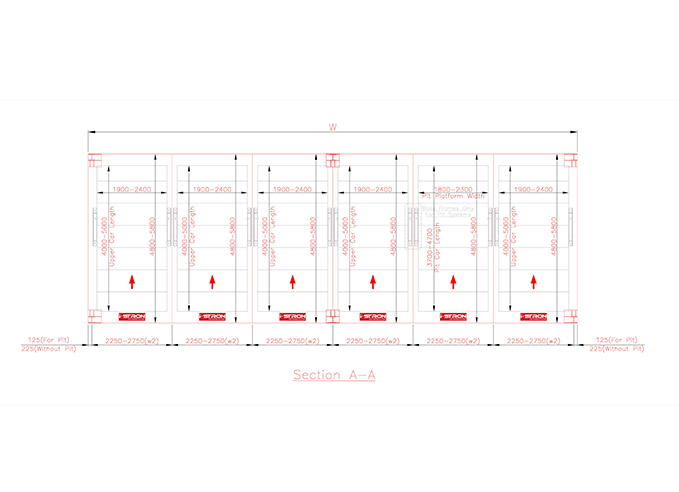

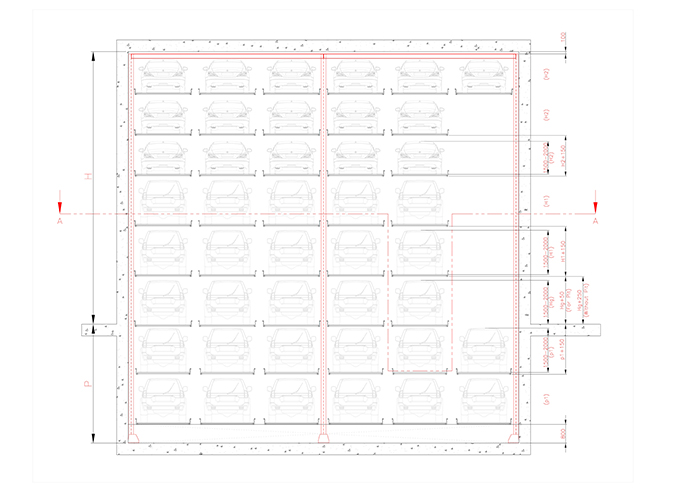

System Dimensions

Note: extra width and length is required for baseplate in case of over ground puzzle.for outdoor systems, column sizes may increase for installations with more than 4 levels which may require extra width and length Width of platforms in the pit will be 100 mm less than upper level platforms
