3IC

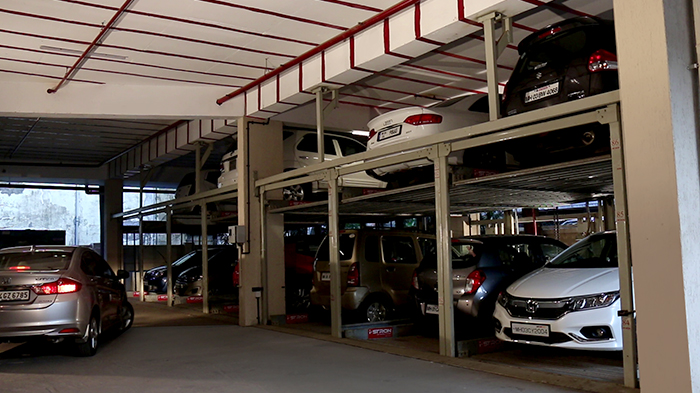

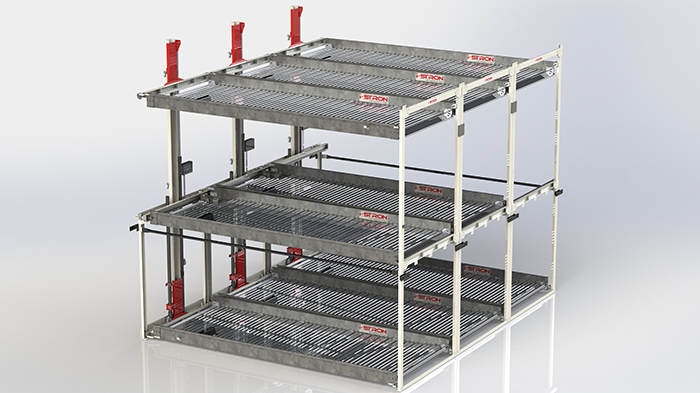

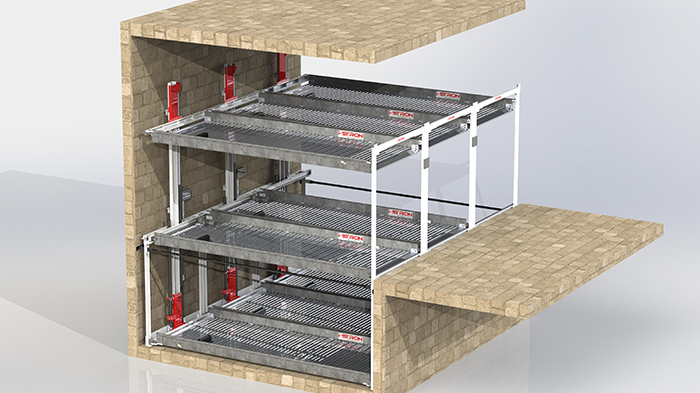

3IC PuzzlePark has 3 levels viz entry, upper and pit. Entry-level platforms are driven horizontally using a motor connected to traction. Upper and Pit level platforms are driven vertically using individual cylinders connected to each platform. To drive out any car parked on upper or pit level platforms, entry-level platforms shift to their left or right positions making a space clear to bring down respective pit level platform. Cars parked on entry-level platforms can be directly driven out.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 4 HP

Structural Loads of system

  • Vertical
    8000 Kgs
  • Horizontal
    700 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

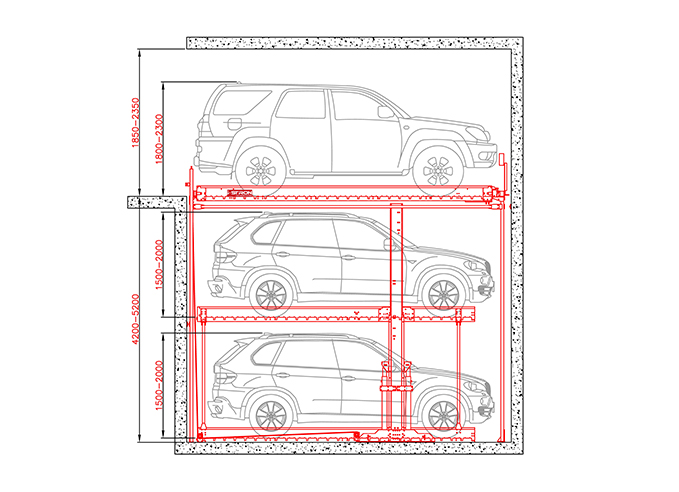

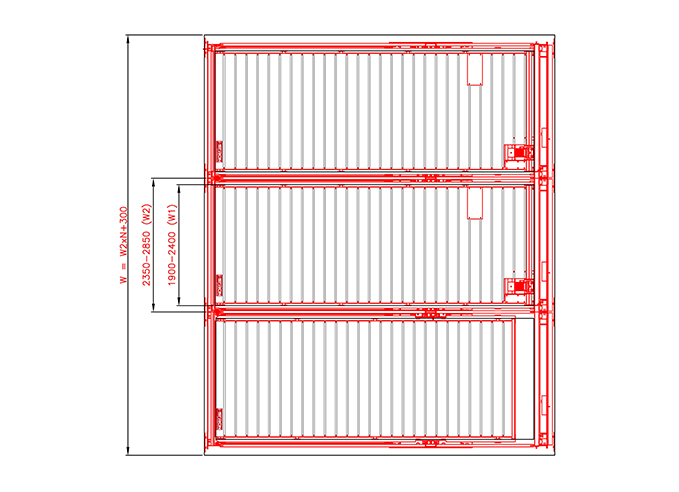

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
