3DS

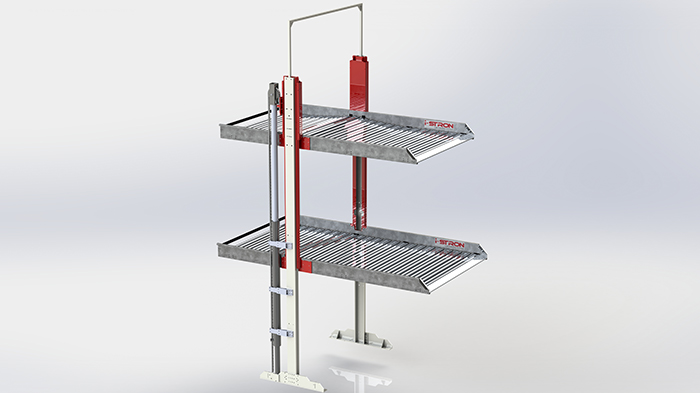

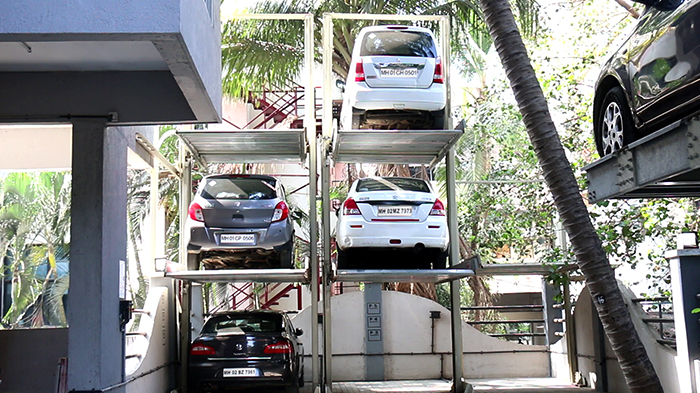

3DS uses 2 platforms, one above the other, to be driven upwards and downwards. While two cars are parked on both the platforms, the third car is parked at ground level. It uses the same mechanism as 2DS with higher parking efficiency but with increased dependency.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 4 HP

Structural Loads of system

  • Vertical
    5000 Kgs
  • Horizontal
    1500 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

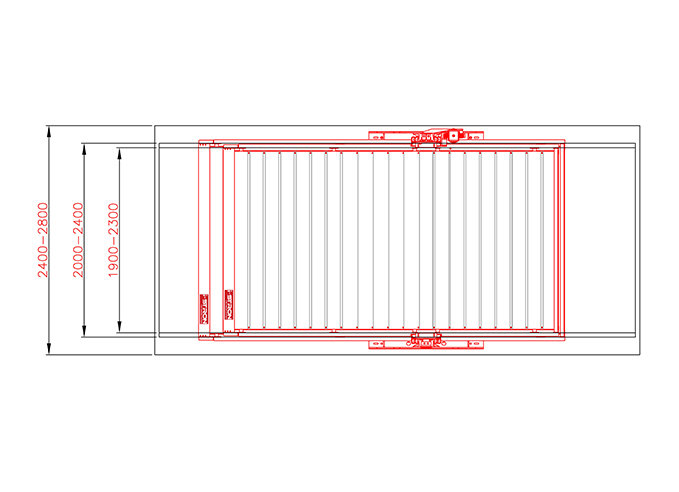

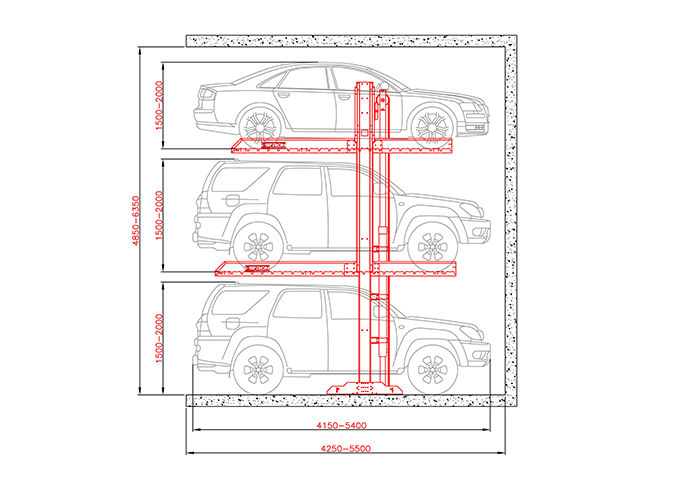

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
