3DP

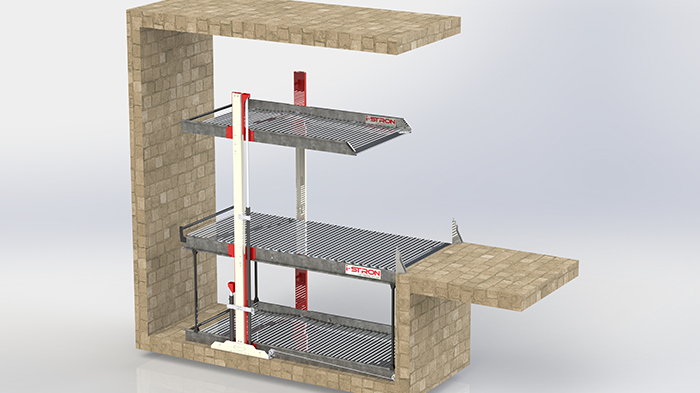

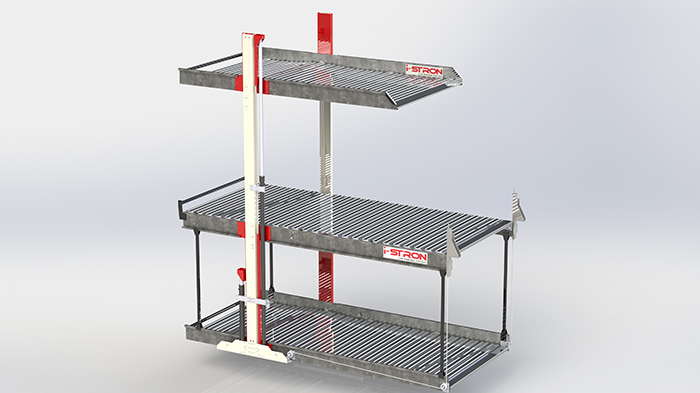

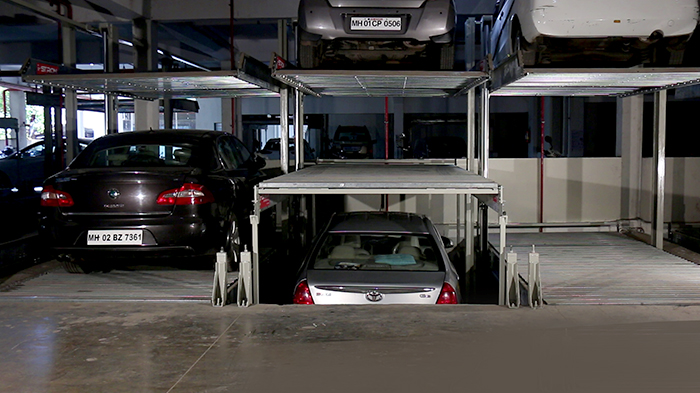

3DP uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out upper or lower level car, entry-level car has to be driven out and parked elsewhere.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 3 HP

Structural Loads of system

  • Vertical
    8000 Kgs
  • Horizontal
    700 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

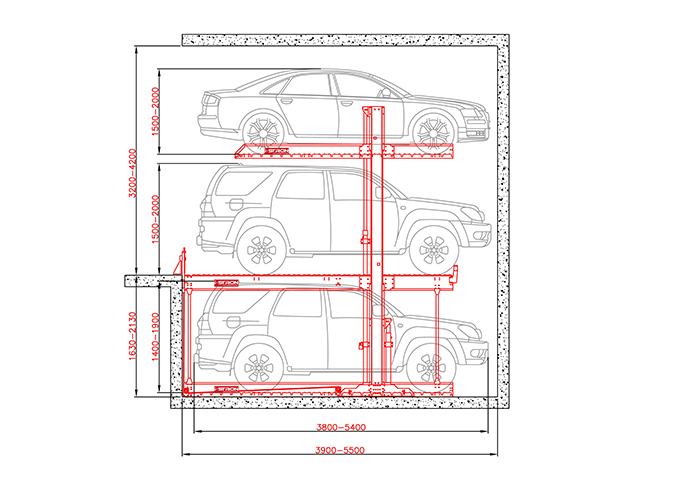

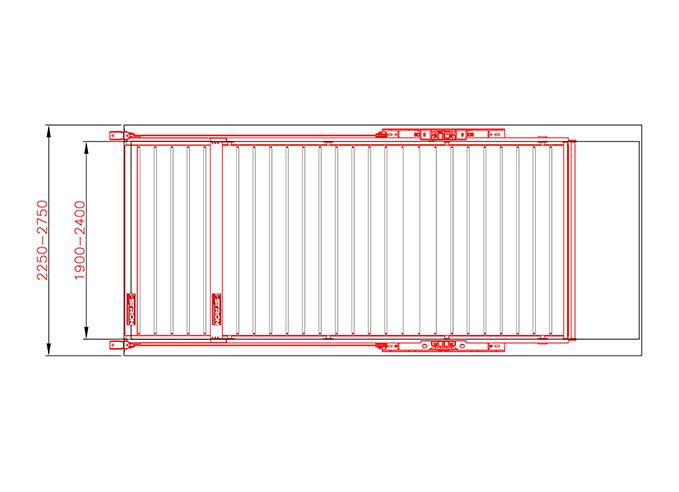

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
