2TC

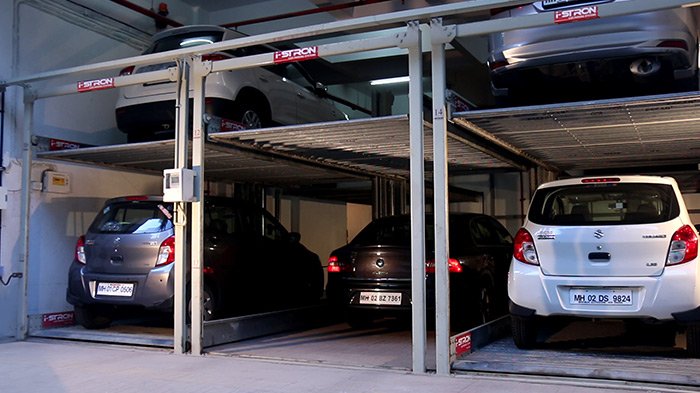

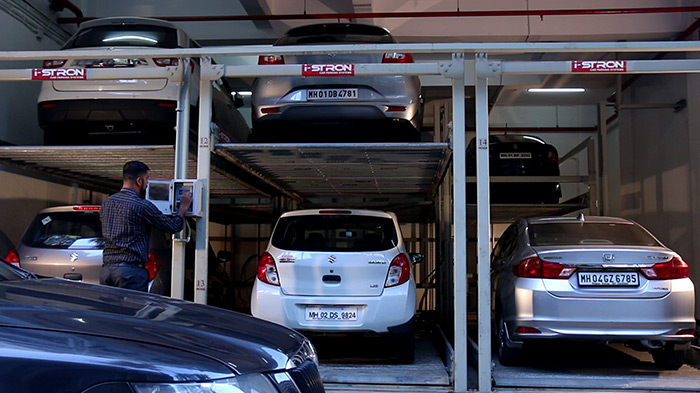

2TC PuzzlePark is 2IC PuzzlePark used in combination with any of the 3 PuzzlePark viz 2IC, 2HC and 3IC in drive through manner. It is typically used when drive way is at one side and parking is to be organized at other side. The car enters 2TC from the driveway. In order to enter the PuzzlePark behind 2TC, the car drives in from the driveway and enters by passing through the empty space created in 2TC. It is possible to have two 2TC PuzzlePark before the main PuzzlePark. Parking efficiency is maximum in this case.

General Specifications

  • Loading Capacity
    2000 Kgs per car
  • Drive
    Hydraulic
  • Coating
    Sand blasted, Epoxy Painted System.Hot Dip Galvanized platforms
  • PowerPack
    3 phase Induction Motor - 4 HP

Structural Loads of system

  • Vertical
    5000 Kgs
  • Horizontal
    700 Kgs

Electrical Requirement for system

  • Incoming Supply
    3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
  • Switchgear
    4 pole, 63 amps MCB for each powerpack
  • Cable from Main switch to MCB
    4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

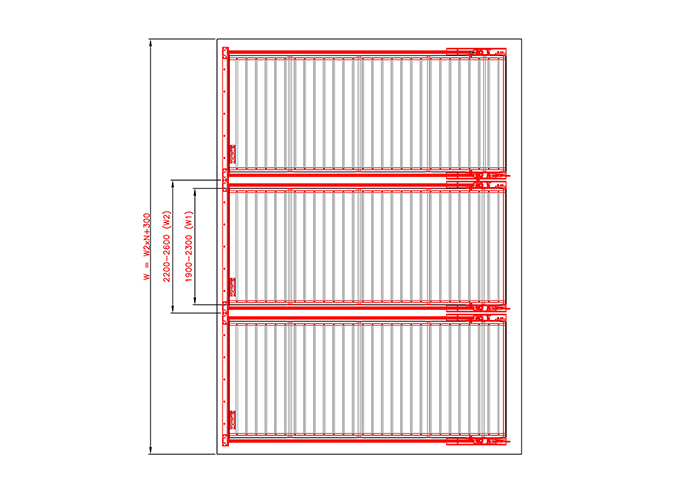

System Dimensions

Note: These are indicative figures only. For details, please refer our planning guide and contact our sales representatives.
